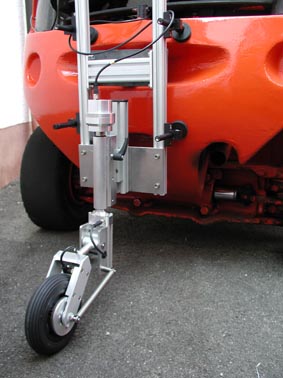

The PEGASEM 5W-6 Miniwheel expands the product line of PEGASEM Measuring Wheels allowing for low and extra low speed measurements. It is designed for indoor and outdoor use on smooth surfaces, where exact distance, speed and acceleration measurments are required. A wheel diameter of only 150mm (6 inches) and a swivel angle of 360 degrees make the Miniwheel ideally suited for measuring forklift trucks, escalators, light trucks and hand operated transportation devices. Because the Miniwheel has a compact design, it can often be placed under the vehicle when mounting on the vehicle’s body is not desired.

Features
·   Measures forward and backward direction
·   High distance and speed resolution
·   Compact design
·   Integrated slip-ring transducer
·   Ideal for small vehicles
·   Puncture proof tyre
·   No tyre pressure monitoring required
·   Precise speed information even near zero

Applications
·   Recording vehicle dynamics on forklifts
·   Testing emergency stop behaviour on escalators
·   Brake testing on light trucks and small industrial vehicles
·   Distance measurement
·   Measuring the turning circle
